Overview
Packet Inspector can be used in various Wireless network application to capture zigbee packets.
- Supported ZigBee and IEEE 802.15.4 networks.
- Captured packets, Open/Save file with multiple file formats (cubx, dcf, pcap).
- Filtering of packets based on criteria.
- Packet details by display of byte data received by the radio.
- Accurate timestamping of received packets.
- Supported 2.4 and SubGHz radio configuration.
- Supported RESTful API.

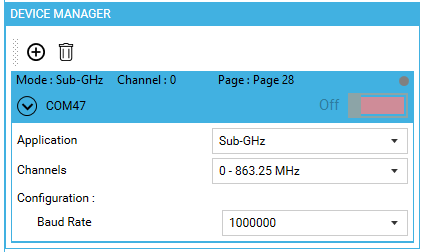

Device Manager
- Supported 2.4 and SubGHz radio configuration.
- Automatically check device availability status.
- Multi channel sniffing.

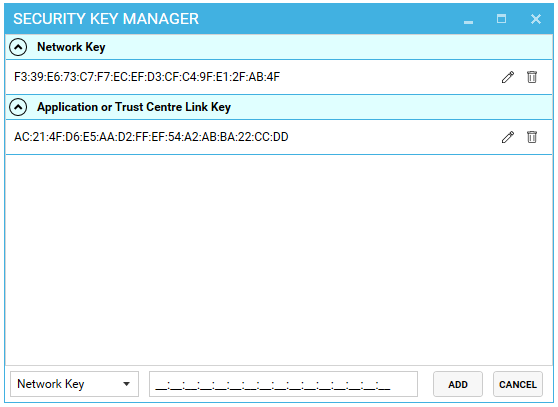

Key Configuration
- Allows to configure multiple Network Key.
- Allows to configure multiple Application or Trust center link key.

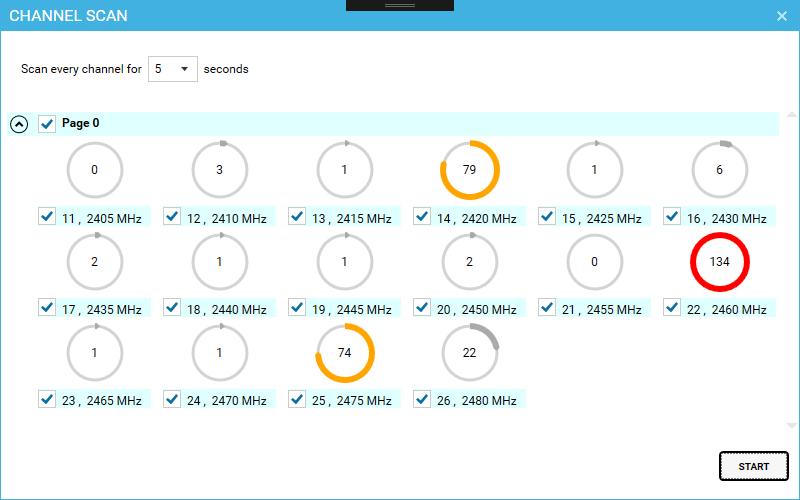

Channel Scan
- Scan channels for both 2.4Ghz and SubGHz radio.
- Configurable time to scan specific and all channels.
- Show traffic on each channel based on time configuration.

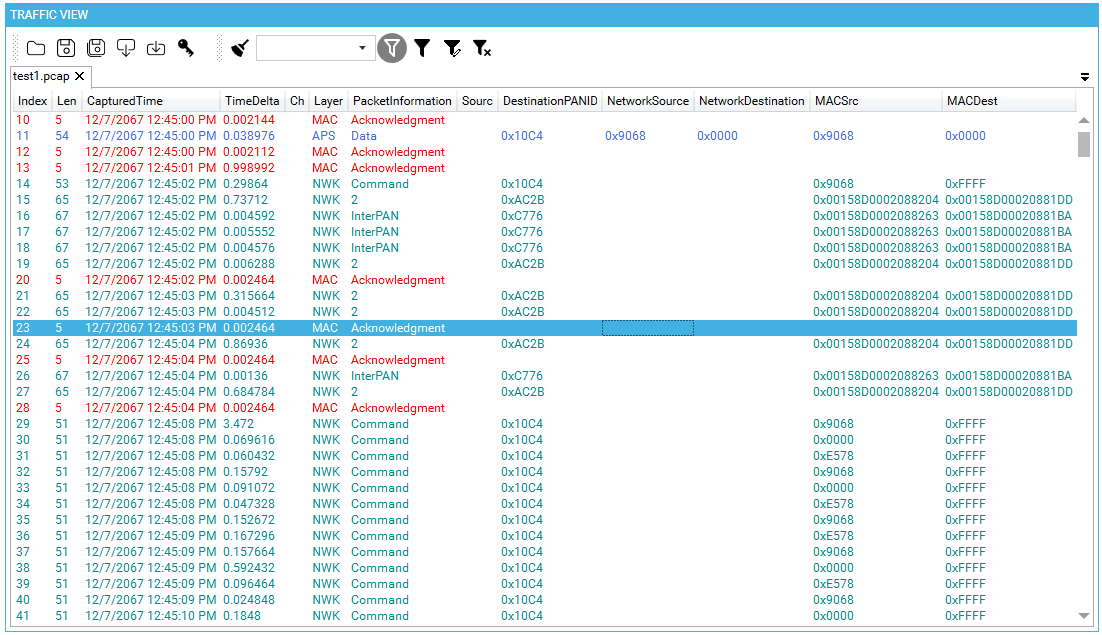

Traffic View
- User friendly and intuitive UI which makes it easy to view captured packets.
- Supported packet filteration.
- Packet Information with coloring scheme to easily identify the layer of protocol.
- Displays Length of Packet, Captured Time, Time Delta, Channel, Protocol Layer, Packet Information, PAN ID,Source and Destination ID.
- Allows column customization.

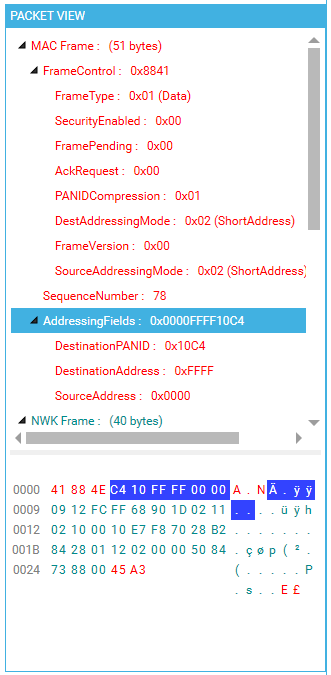

Packet View
- This panel displays the decoded packet details byte wise.
- Hierarchical view of all the decoded fields.
- Byte details of selected tree nodes from packet view will be highlighted in byte panel.
- Creating of quick filter from packet view.
