Overview
ZTM (Zigbee Test Manager) is a Zigbee Testing Tool, which assists in verifying the conformity of Zigbee node as per the Zigbee Profile Specification standards defined by Zigbee Alliance.
- Approach Zigbee development with confidence De-risk your certification schedule and spending.
- Designed for agile product developers to confidently develop, verify, and automatically test products against the Zigbee standard in advance of applying for certification.
- Complete reference for each of the Zigbee Device Types, clusters, and security functions, enabling easy customisation and allowing for rapid development and certification of your products.
- Speedily execute a bespoke series of commands allowing for rapid specification compliance validation during development.

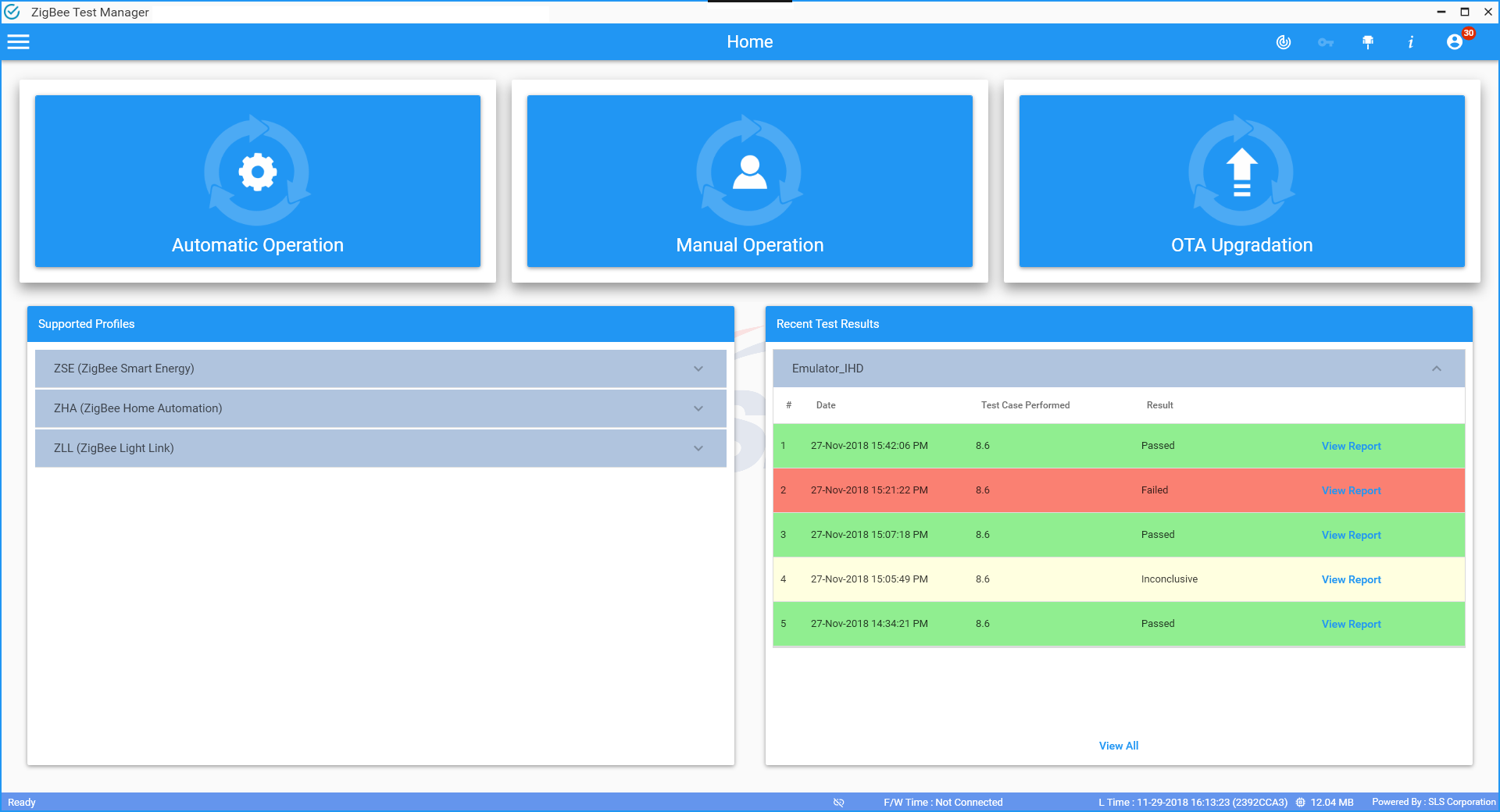

Project Dashboard
- Automatic Mode -Quickly test large sets of responses to be verified - ideal for QA and regression testing.
- Manual Mode - The controlled way to manage compliance of product development.
- Import/Export functionality for test case scenarios, comprehensive reporting, And integrated support of full Zigbee packet capture to aid full PAN debugging.
Supports following zigbee profiles in automated testing :
Smart Energy 1.2b Smart Energy 1.4 Home Automation Zigbee 3.0

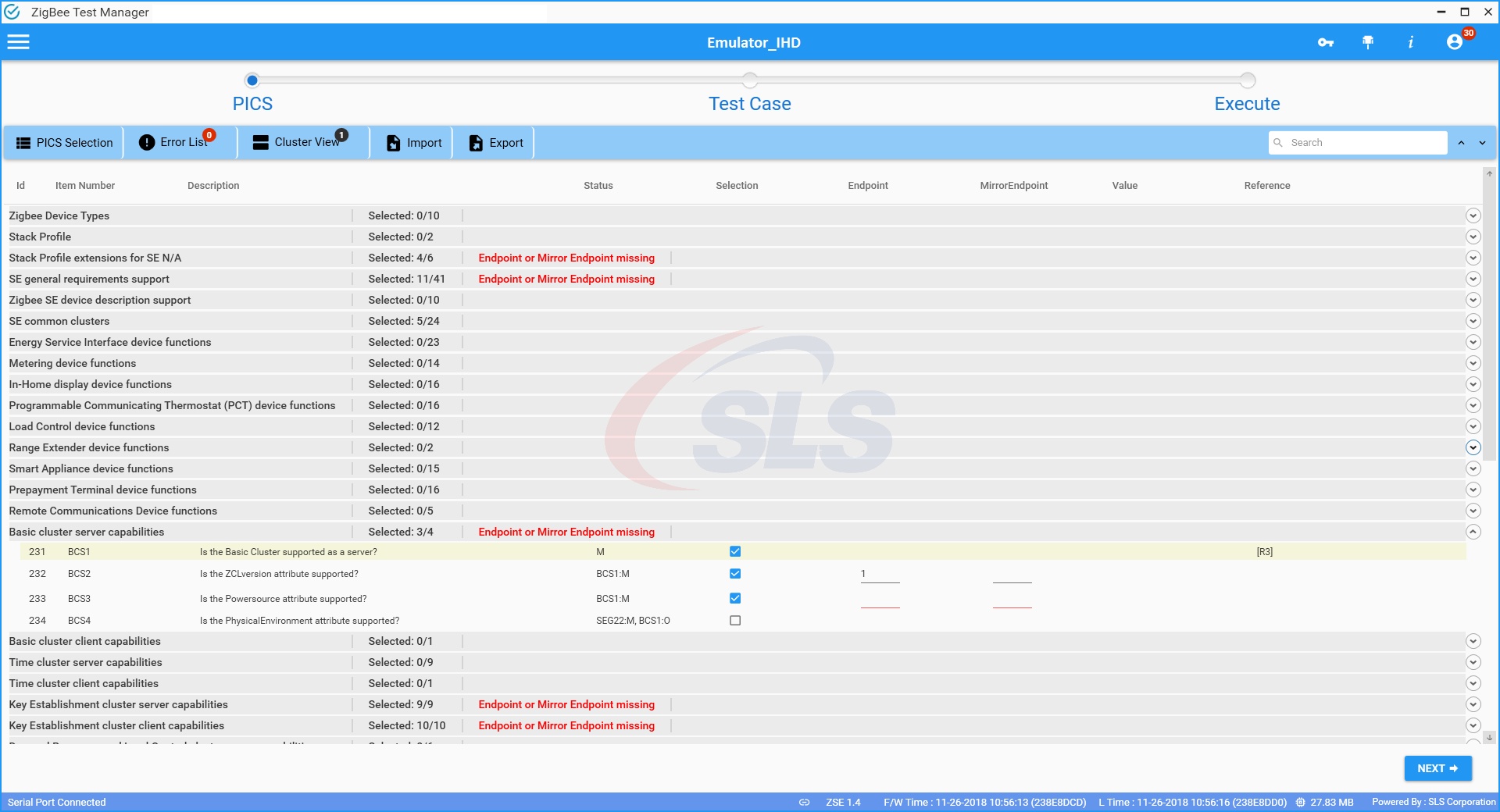

PICS Configuration
- Fill up PICS document via application template.
- Supported Import-Export PICS Excel file.
- Automatic Cluster list and Testcase list loaded based on PICS configuration.

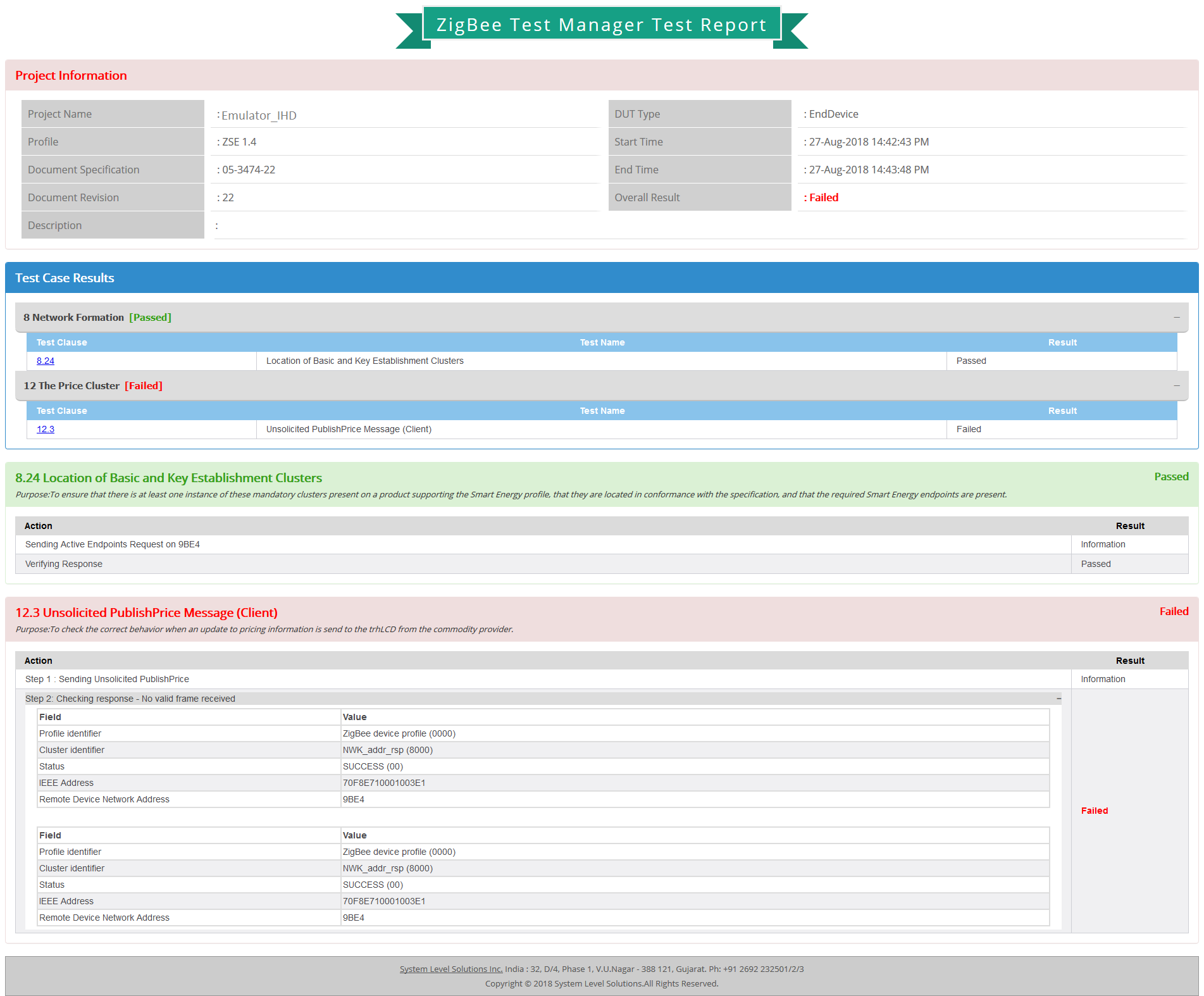

Comprehensive Test Report
- Comprehensive test report, including runtime duration, status, parsing and failures.

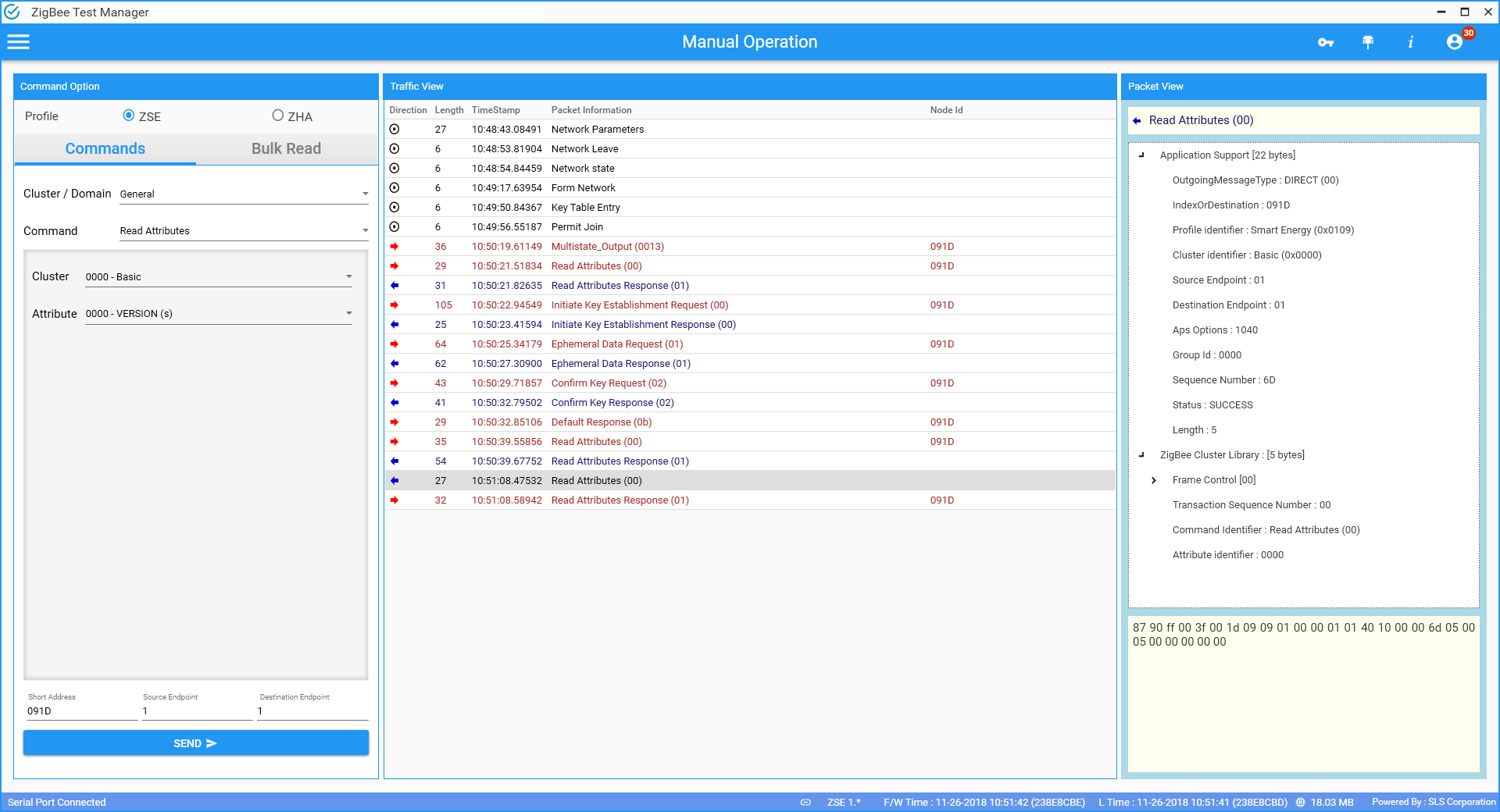

Manual Operations
- Supported to run and test a single command.
- Tracking of incoming and outgoing frames.
